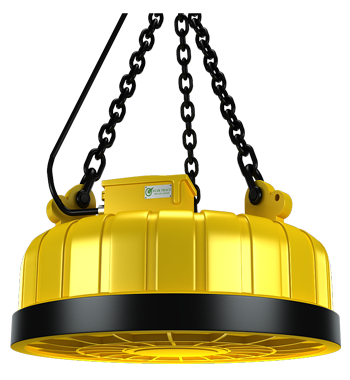

CIRCULAR LIFTING MAGNET

LOAD LIFTING MAGNETS

STAR TRACE Load Lifting Magnets are of robust cast and bolted or fabricated construction designed for handling Solid Slabs, Steel Ingots, Bloom Billets, Pig Iron, Light finished parts, Scrap and gives Maximum reliable, efficient and economical performance in the most arduous service condition.

CIRCULAR HEAVY DUTY MAGNETS

Shells of Star Trace Lifting Magnets are made from high permeability Steel Casting as per IS:4491(BSS-1617), properly machined, to provide the most efficient magnetic circuit. The periphery of the magnet is heavily ribbed to give added mechanical strength and an increased radiation surface to aid cooling. Center & Outer Poles are machine from high permeability magnet steel with cored recesses arrangement to protect heads of through tensile bolts. The faces of poles from spigot joints in magnet shell, the outer poles of larger magnets are skirted for added. The pole shoes are easily replaceable.

TERMINAL BOX is designed to ensure protection whilst in operation and are of double entry type enabling the leads from the coils to be sealed in a separate cavity. The outside cable is brought through a gland into this second compartment ensuring no possibility of moisture entering the windings.

MAGNETIZING COILS for magnet size up to 900 mm dia is pure annealed wire wound and above these are strip wound. The glass insulation of class H standard with Fibreglass NOMEX tape forming an interlayer makes coil withstand high temperature.

BUMPING PLATES are of high grade Manganese Steel Casting as per IS - 276 with heavy ribs for added strength. These are clamped in position by the center and outer poles offering complete protection to the coil. The magnets are suspended with three legged STRING CHAINS made of best quality forged steel terminating in a forged ring. A two core cable is provided for connection with the supply and suitable insulated plug and socket ensure easy operation.


Specification Of Circular Lifting Magnet

DETAILS OF ALUMINIUM CONDUCTOR LIFTER APPROXIMATE LIFTING CAPACITIES(Kgs.)
Model No. D H Weight (Kgs) Power (K.W) Heavy Scrap Broken Scrap Cast Iron Solid Bloom
STR 101 700 750 400 2.8 200 160 165 4000
STR 102 900 900 750 3.8 350 275 300 7000
STR 103 1100 950 1400 6.0 625 475 500 9000
STR 104 1300 1050 1850 9.5 960 725 775 16000
STR 105 1600 1200 3100 11.5 1500 1100 1200 24000
STR 106 1800 1300 3600 12.5 200 1650 1800 30000
DETAILS OF COPPER CONDUCTOR LIFTER APPROXIMATE LIFTING CAPACITIES(Kgs.)
Model No. D H Weight (Kgs) Power (K.W) Heavy Scrap Broken Scrap Cast Iron Solid Bloom
STR 201 700 750 450 3.0 220 175 180 5000
STR 202 900 850 850 4.8 390 325 350 8000
STR 203 1100 950 1600 7.0 675 575 600 10000
STR 204 1300 1050 2100 10.0 1050 800 850 19000
STR 205 1600 1200 3500 14.0 1600 1200 1300 27000
STR 206 1800 1300 2400 18.0 2200 1800 2000 35000
Note:
1.Technical data specification subject to change.
2.Special Circular Lifting Magnets can be made on request, Please send us your technical data and application, required for our engineers to provide.
